060 Series

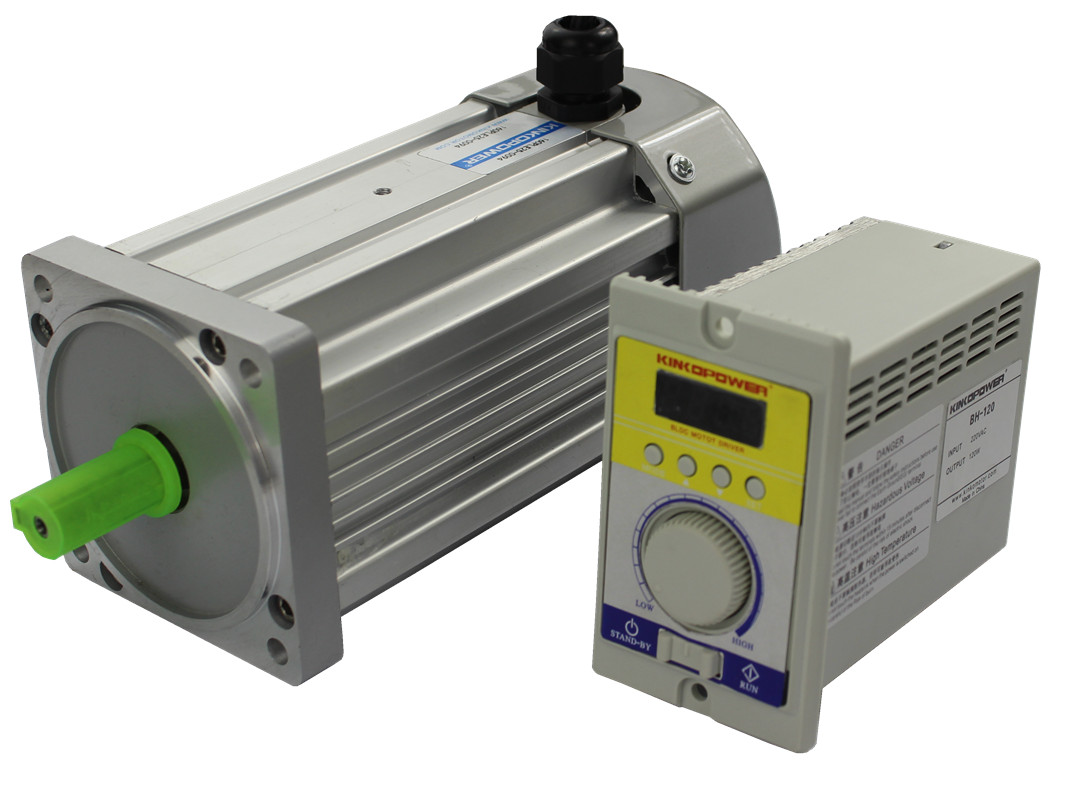

Brushless Motor

60 series brushless motor adopts hall electronic commutator structure, eliminating carbon brush and commutator. It is designed with low noise and optimized electromagnetic parameters. It is made of high magnetic energy product and high quality high-temperature resistant permanent magnet material. High efficiency, wide speed range, energy saving effect is obvious

Order Download Application

BD60 DC supply

DC supply, specification as below

Spec.	Unit	Model
Spec.	Unit	BD60-60-2430	BD90-90-2430	BD90-120-2430	BD90-200-2460	BD60-250-2480	BD60-400-2480
Polar Pairs	P	2
Rated Power	W	60	90	120	200	250	400
Rated Speed	rpm	3000	3000	3000	3000	3000	3000
Supply Voltage	VDC	12/24	12/24	12/24	24/48	24/48	24/48
Rated Current	A
Rated Torque	N.m	0.19	0.28	0.38	0.63	0.79	1.27
Length	mm
Weight	KG
Feedback Signal		None/Hall/Magnet Encoder

BM60交流供电无刷电机
AC Supply specification

Spec.	Unit	型号
Spec.	Unit	BM60-200-30	BM60-400-30	BM60-550-24H	BM60-750-24H	BM60-1.1-24H	BM60-1.5-24H
Polar Pairs	P	2
Output Power	W	200	400	550	750	1100	1500
Rated Rotating Speed	rpm	3000	3000	12000/24000	12000/24000	12000/24000	12000/24000
Supply Voltage	VAC	220
Rated Current	A
Rated Torque	Nm	0.63	1,27	0.43/0.21	0.59/0.29	0.87/0.43	1.19/0.59
Length	mm
Weight	KG
Signal		None/Hall/Magnet Encoder

Definition of the models of brushless motor
BM60-200-30HM

BM	60	200		20	H	M
BM Series	Model 60*60	RatedPower 200 200W 1.1 1100W	Voltage None DC310V	Rotating Speed 20 2000 30 3000 60 6000 80 8000 L 12000 H 24000	None No feedback signal H 120 degree Hall B Encoder	Brake M Electronic Magnet Brake

DM60-200-2430HM

DM	60	200	24	20	H	M
DMSeries	Model 60*60	Rated Power 200 200W 1.1 1100W	Voltage 24 DC24V 48 DC48V	Rotating Speed 20 2000 30 3000 60 6000 80 8000 L 12000 H 24000	Feedback Signal None No signal H 120 degree Hall B Encoder	Brake M Electronic Magnet Brake
