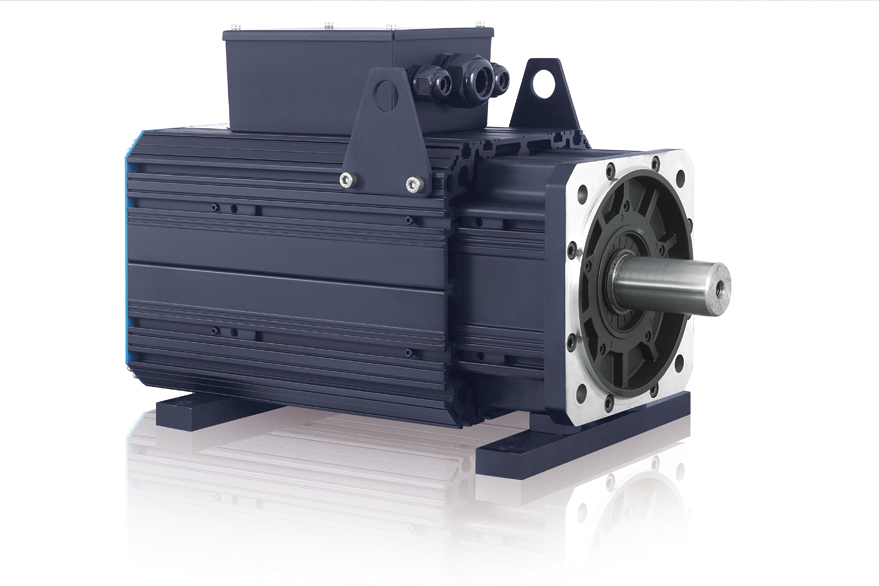

225 Series
Servo Motors
The diameter of the installation stop is 215mm. The energy saving rate of the motor is up to 20% ~ 80%, the closed-loop pressure control can prolong the pressure holding time, the response is sensitive, the fast start time only needs 0.05s, the output hydraulic oil according to the proportion, avoids the excess heat generation, and the temperature rise is low. Can bus control, can realize multiple servo pump and pump. Can realize double displacement piston pump control
OrderDownloadApplication




Rated Power kw 5.5     7.5 11 15 18.5  22 30 37
Rated Current A 10.5 14.4 21.3 29  35 42 58  72
Rated Rotating Speed rpm    1500/3000
Rated Torque Nm  42 62 86 105 129 148 177  195
Max. Torque Nm  66 96  133   162   200  229  274  303
Motor Inertia Zkg.m2  0.0266 0.0403  0.0585  0.0824  0.1129  0.1512  0.1982  0.2511
Encoder       Optional:  TS2640N321E64
 LL








mm










 		  335  371  407  443  479  515  550  587
 LR       77
 LA       215
LB        180
 LC         224
 LE         5
 LF         9
 LH         200
 LI  122.5  138.5  156.5   174.5  192.5  210.5  228.5  236.5
 LJ         149
 LK         56
 LW         44
 LZ         14.5
 L1  205  238  270  302  335  360  385  410
 L2         41.5
 L3         35
 B1         252
 B2         278
 b         12
 d         42
 t1         5
 LY         25

Model definition of permanent magnet efficient motor
AM225-11H-PT
AM 225 11 H  P T
AM Series

 External Dimension
225   225mm

 Rated Power
11 11kw


 L   1500rpm
 H   3000rpm		  P   Encoder


 T特殊代码
