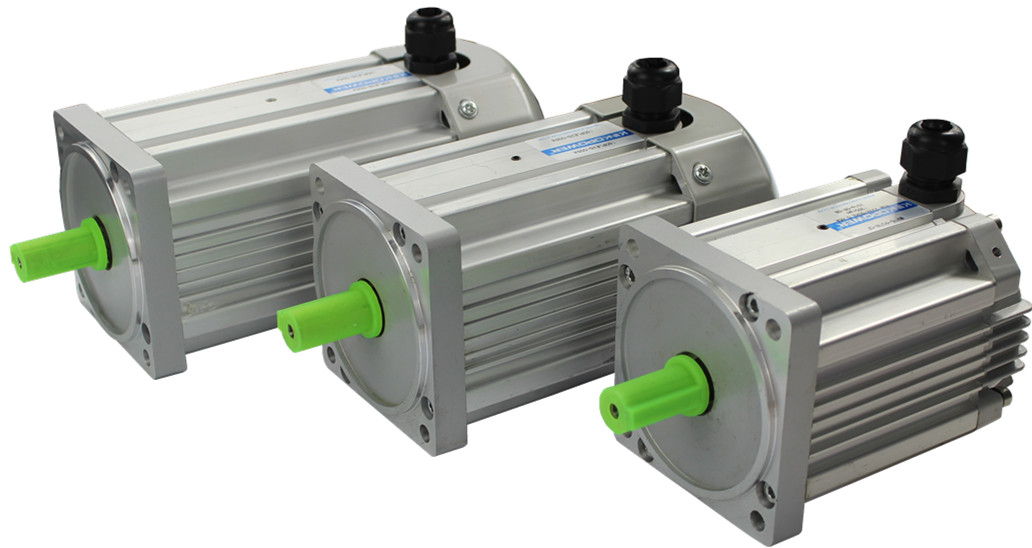

130 Series
Brushless Motor

130 series brushless motor adopts hall commutation structure, which eliminates carbon brush and commutator. It is designed with low noise and optimized electromagnetic parameters, and is made of high magnetic energy product and high quality high-temperature resistant permanent magnet material. High efficiency, wide speed range, energy saving effect is obvious

Order Download Application

BD130 brushless motor

AC supply, specification as below

Spec.	Unit	Model
Spec.	Unit	BD130-750-4820	BD130-1100-4830	BD130-1500-4830	BD130-2200-9630	BD130-3000-9630
Polar Pairs	p	4
Rated Power	W	750	1100	1500	2200	3000
Rated Speed	rpm	2000/3000	2000/3000	2000/3000	3000	3000
Supply voltage	VDC	48/96	48/96	48/96	96	96
Rated Current	A
Rated Torque	Nm	3.58/2.38	5.25/3.5	7.16/4.77	7	9.55
Length	mm
Weight	kg
Feedback Signal		None/Hall/Magnet Encoder

BM130 Brushless Motor

AC supply, specification as below

Spec.	Unit	Model
Spec.	Unit	BM130-1.1-30	BM130-1.5-30	BM130-2.2-40	BM130-3-40	BM130-4-40
Polar Pairs	p	4
Rated Power	W	1100	1500	2200	3000	4000
Rated Speed	rpm	1000/1500/3000	1000/1500/3000	3000/4500	4500	4500
Supply Voltage	VAC	220
Rated Current	A
Rated Torque	Nm	7/ 3.5/2.62	9.55/4.77/3.58	7/5.25	7.16	9.55
Length	mm
Weight	kg
Signal		None/Hall/Magnet Encoder

BM130H1.5-4.77-1

BM	130	H	1.5	4.77	1	P
BM series	Dimension 130 130*130mm	A 1000rpm B 1500rpm C 2000rpm D 3000rpm E 4500rpm	Rated Power 1.5 1.5kw	Rated Torque 4.77N.M	1 Solid shaft button	P no encoder
