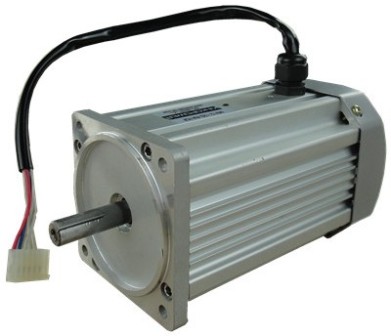

MV12

Aluminum alloy housing, beautiful appearance, excellent heat dissipation effect, GRADE B insulation, IP54 protection grade. Single-phase motor can be equipped with speed measurement feedback stepless speed regulation, three-phase motor can be adjusted by frequency converter

Order Download Application

Spec.

Spec.	Unit	Model
		MV12-040-A1			MV12-060-A1			MV12-090-A1			MV12-120-A1
Rated Power	W	40			60			90			120
Rated Voltage	V	1-220	3-220	3-380	1-220	3-220	3-380	1-220	3-220	3-380	1-220	3-220	3-380
Frequency	Hz	50
Rated Current	A	0.36	0.27	0.16	0.47	0.41	0.25	0.65	0.56	0.33	0.85	0.73	0.43
Poles	P	4P/2P
Rated Rotating Speed	rpm	1300/2600			1300/2600			1300/2650			1300/2650
Starting Torque	N.m	0.22	0.9	0.9	0.35	1.4	1.4	0.48	2	2	0.62	2.6	2.6
Rated Torque	N.m	0.335	0.31	0.31	0.5	0.46	0.46	0.75	0.7	0.7	1	0.93	0.93
Capacitance	uf	2.5			4			5			7
Length	m m	105(120)			135 (152)			152(167)			157(172)
Weight	kg

Note: body length L() internal size for single-phase motor with speed feedback size! The starting torque and rated torque parameters in the table are 4P motor parameters

Dimensions

Motor Models Definition

MV	12	120	R	A1	C	M
MV series	Output Shaft Diameter 12 12mm 11 Customized 14 Customized 15 Customized	Rated Power 025 25W 030 30W 040 40W 060 60W 090 90W 120 120W	Speed Measure Feedback	Shaft Type A1 圆轴带键Round A 圆轴铣扁 GU 齿轮轴 GN 齿轮轴 TR带牙	电压 /转速 C 220V 1400rpm D 220V 2800rpm S3 380/220V 1400rpm D3 380/220V 2800rpm	刹车 M 电磁刹车
