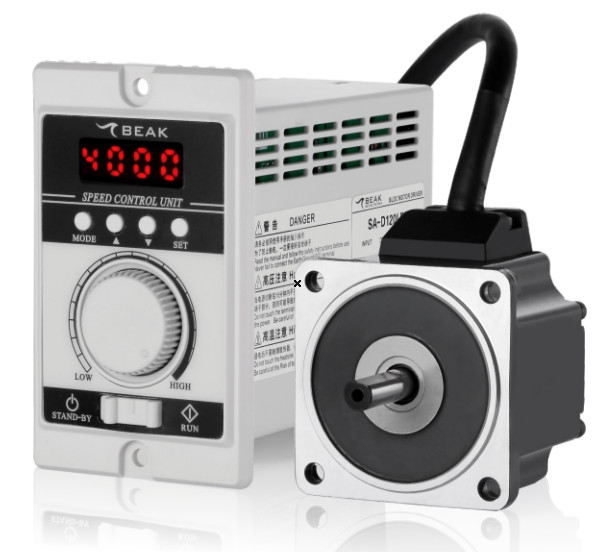

Brushless Gear Reducer
120W～370W
Permanent magnet brushless DC motor is adopted, the length of the motor is shortened by more than 50%, constant torque output, low speed torque, speed regulation performance is better than frequency conversion speed regulation, and single-phase motor speed regulation. The power supply voltage of the governor has dc power supply and AC power supply, which can be applied in a wider range
OrderDownloadApplication


Spe. Symbol Unit Model
GV12-120B5-24  GV12-180B5-24  GV15-250B5-24  GV15-370B5-24
Motor Power    W 120W 180W 250W 370W
Input Voltage V   V  DC24 AC220 DC24 AC220 DC24 AC220 DC24 AC220
Rated Current   A
Input Torque Ta Nm 0.335 0.31 0.5 0.46 0.75 0.7 1 0.93
Reduction Ratio ratio  i 3、5、6、7.5、9、10、12.5、15、18、20、25、30、36、40、50、60、75、90、100、120、150、180、200
Input  Rotating Speed n1 r/min 3000
Output  Rotating Speed n2  r/min n1/i
Output Torque Tb  Nm     Ta*i
Max. Load TN Nm 40 40 40 40
Output Shaft Diameter Ø  mm  12 12  15  15
Length L  mm
Weight G  kg

备注：直流无刷电机必须配专用调速器才可以使用。输入电压为调速器输入电压！Notes: Brushless DC motors can be only used with the special governor. The input voltage is the governor input voltage.

  •


Reducer External Dimensions

Brushless Drive External Dimensions

 Moment Curve

Reducer Model Definition

GV 15 120 B 10  24   M
GV Series




 Output Shaft Diameter
15   15mm
18  18mm


 Rated Power
120     120W
180     180W
250     250W
370     370W
 Motor Type
B  Brushless


 Reduction Ratio
10



 Voltage
24   DC24V
31      DC310v
Brake
M Electronic-Magnet brack
