Coating Machine Motors
3/4kw

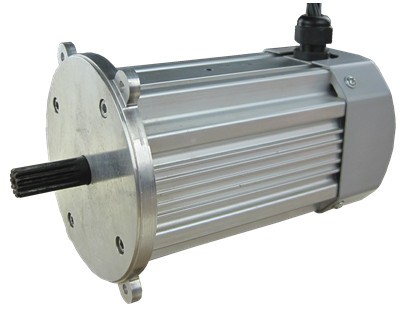

Brushless motor is made of high performance rare earth materials, with perfect adjustment control system, combined with precision hobbing gear reducer, high response speed, high output torque, low noise, large flow. Greatly improve the construction efficiency, and the working environment!



Spec.  Unit Model
 BM90-1.3-45 BM90-2.2-4500 BM130-3-40 BM130-4-40 BM130-5.5-40
Polar Pairs  p     2                                                           4
Rated Power  W  1300 2200 3000 4000 5500
Rated Speed rpm 4500 4500 4000 4000 4500
Supply Voltage  VAC  220                       380
Rated Current  A  6 10 13.63  18.2  14.5
Rated Torque  Nm 2.75  4.67  7.16  9.55 10.6
Length   mm
Weight  kg
Feedback Signal   120 degree Hall
